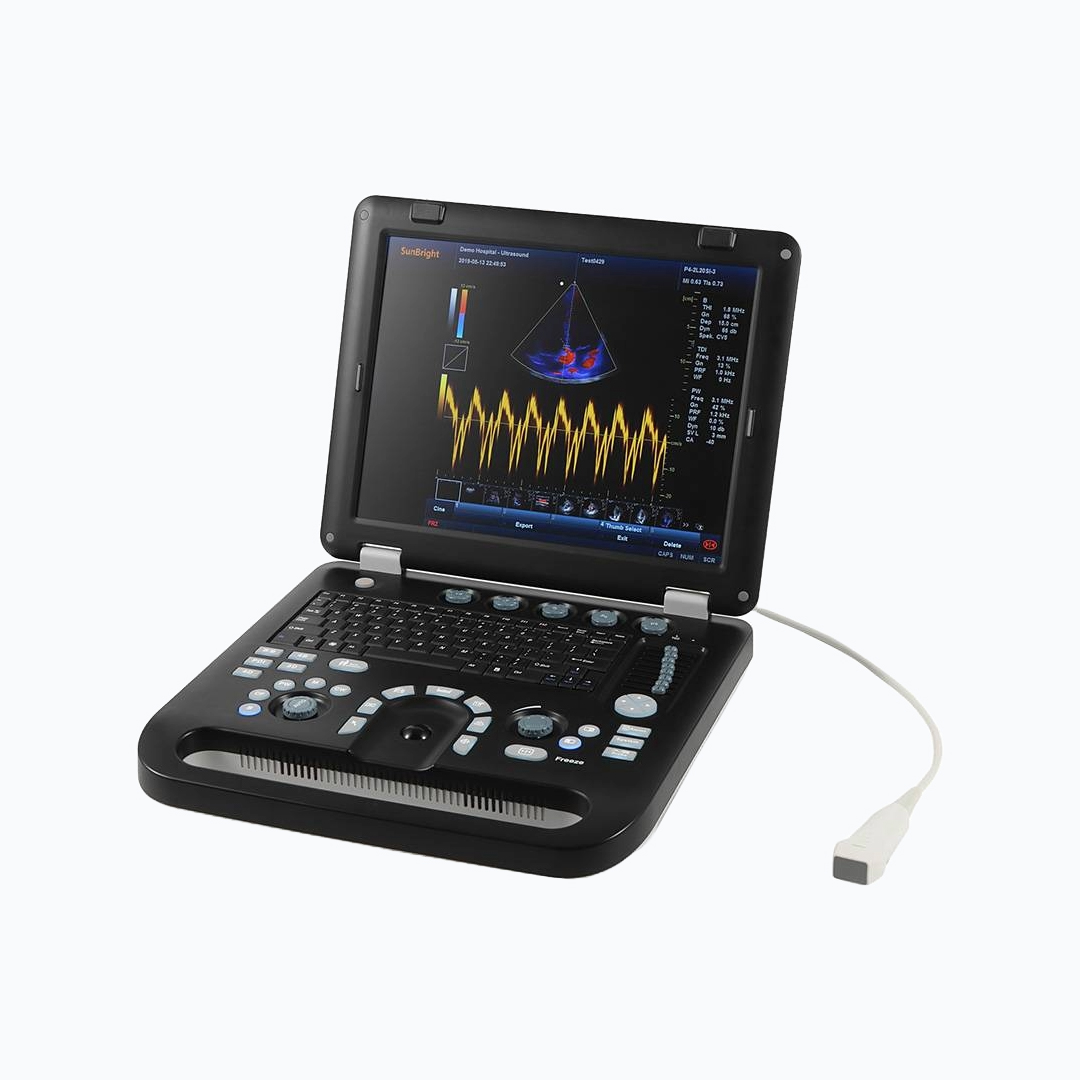

This ultrasound system features a large 15-inch LED color display with real Doppler function, USB ports, VGA port, and two probe connectors. It includes a built-in battery that allows continuous operation for at least 3 hours without power. Ideal for a variety of applications including abdomen, cardiac, obstetrics, gynecology, urology, and more, it offers multiple imaging modes such as B, M, Color Doppler, PW Duplex/Triplex, and more. With a PC-based Color Doppler system running on Windows, it supports any brand of printer and includes adjustable printing options. It also supports DICOM 3.0 and multi-language functionality.
Contact us for pricing!
Product Features
- 15-inch large LED color display with real Doppler function, USB ports, VGA port, and two probe connectors.
- Built-in battery that provides continuous operation for at least 3 hours when the power is off.
- Main Applications: Abdomen, Cardiac, Obstetrics, Gynecology, Urology, Andrology, Small Parts, Vascular, Pediatrics, Musculoskeletal, and more.
- Imaging Modes: B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, CF+B model simultaneously, PDI Color, Dual Color, Simultaneous 2D/3D Color Compound, PW Duplex/Triplex, CFM, CDE, PD, Directional PD, CD, Anatomy M, and Color M mode.
- PC-based Color Doppler with a Windows system that can connect to printers of any brand. The printable area is adjustable and can include pictures, reports, or a combination of both.
- Built-in DICOM 3.0 protocol.
- Multi-language support: English, Chinese, Spanish, Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German, Persian, Thai, and more.
Product Specifications
| Weight | 5.5 kg |
|---|---|
| Dimensions | 37.5 × 36 × 7.5 cm |
| Doppler Mode | Pulsed Wave (PW) Doppler |
| Application | Cardiac, Musculoskeletal, Obstetrics, Small Parts, Urology, Vascular |
| Battery | Built-in Lithium Battery |
| DICOM Connectivity | DICOM 3.0 |
| Display Panel Technology | LED |
| Display Size(Diagonal) | 15-inch |
| Display Resolution | 1024×768 |
| Display Type | Color |
| Hard Disc | 120GB/200GB SSD (Optional), 64GB (SSD) |
| Imaging Mode | 2D, 3D, CF+B model simultaneously, DPDI, PDI, TDI, TSI |
| Instrument Classification | Class II |
| Material | Metal, Plastic |
| Place of Origin | Shanghai, China |
| Power Source | Electricity |
| Probe Connectors | 2 |
| PW Auto Trace Measurements | Yes |
| Quality Certification | CE (Conformité Européenne) |
| Safety Standard | None |
| Shelf Life | 2 Years |
| Software Package | General, OB/GYN, Small Parts, Urology |
| Warranty | 2 years |
- Connectivity Ports
- Display And Imaging
- Image Storage
- Transducers
- User Interface
- Performance Features
Connnectivity/Ports
| Transducer Ports |
2 |
|---|---|
| USB Ports |
2 |
| Ethernet Port |
2(100Mb/1000Mb) |
| External Display |
VGA, HDMI |
| Printer(Optional) |
USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
| Printing Area |
Image, Report, Image+Report |
| Footswitch |
USB |
Display & Imaging
| Display Type |
LED |
|---|---|
| Size |
15" (Diagonal) |
| Resolution |
1024x768 pixels |
| Contrast Ratio |
800:1 |
| Brightness |
230 cd/m² |
| Color Depth |
24-bit |
| Rotation Angle |
± 90° |
| Grey Levels |
256 |
| Cine Memory |
1200 frame (max) |
| Cine Review Speed |
1, 2, 4, 8 |
| Cine Review Loop |
Yes |
| Cine Capture Function |
Yes |
| Imaging Technologies |
Panoramic Imaging Technology, All-Digital Signal Processing Technology, Multi-Beam Formation Technology, Speckle Reduction Technology, Tissue Harmonic Imaging Technology, Dynamic Tissue Optimization Technology, Duplex & Triplex Synchronous Display, Directional Power Doppler, Imaging Parameters Preset, Tissue Special Image, PW Auto Trace, Update in Line, CF + B Mode on One Screen, Complex Model Imaging, IMT Auto Measurements, Virtual Convex Array, Trapezoidal Imaging |
| Image Zoom |
Real-Time Image Zoom |
| Zoom Range |
100%~400% |
| Image Inversion |
Flip the image along the Up/Down or Left/Right axis. |
| Pan Control |
Adjust the image position or flip it along any axis (up/down, left/right). |
Image Storage
| Storage Format |
PNG, AVI, BMP, JPEG, DICOM |
|---|---|
| Export Video Format |
AVI |
| Export Image Format |
PNG, BMP, JPEG, DICOM |
| External Storage |
USB Flash Drive |

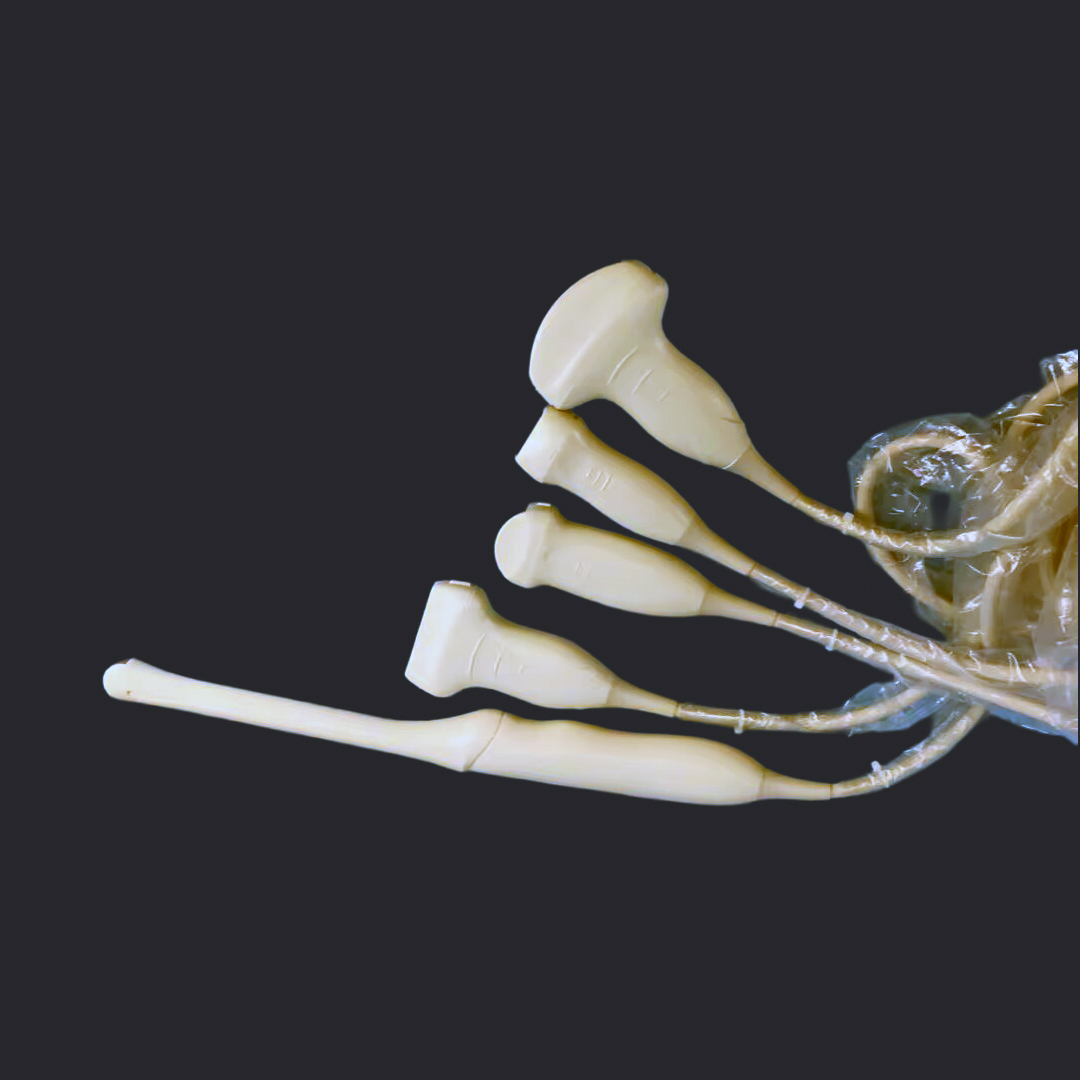

Transducers
| Probe Type | Frequency | Pitch | Radius | Elements |
|---|---|---|---|---|
| Convex Array Probe | Central 3.5 MHz (2.0 MHz to 5.0 MHz) | 0.516mm | 60 mm | N/A |
| Linear Array Probe | Central 7.5 MHz (5.0 MHz to 10.0 MHz) | 0.352mm | N/A | N/A |
| Transvaginal Probe | Central 6.5 MHz (5.0 MHz to 8.0 MHz) | 0.216 mm | 10 mm | N/A |
| Microconvex Probe | Central 5.0 MHz (2.0 MHz to 5.0 MHz) | N/A | N/A | N/A |
| Rectal Probe | 4.0 MHz to 6.5 MHz | N/A | N/A | N/A |
User Interface
- User Permission Settings
- Intuitive Windows-based Operating Principles
- User-Centric Control Panel with Home Base Layout and Control Customization
- On/Off Task Light and Backlit Illumination of Control Panel
- Variable Brightness to Indicate Active State of Function Keys
- Easily Accessible, Full-Size QWERTY Keyboard for Text Entry, Function Keys, and System Programming
- Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks), System Setup Menu
- Online Attention Function, Guiding the User on How to Operate in the Next Step
Performance Features
| Digital Broadband |
12288 Channels |
|---|---|
| Beamformer |
Reprogrammable |
| Transmit Voltage |
Adjustable (15 Steps) |
| Beamformer Frequency Range |
1-40 MHz |
