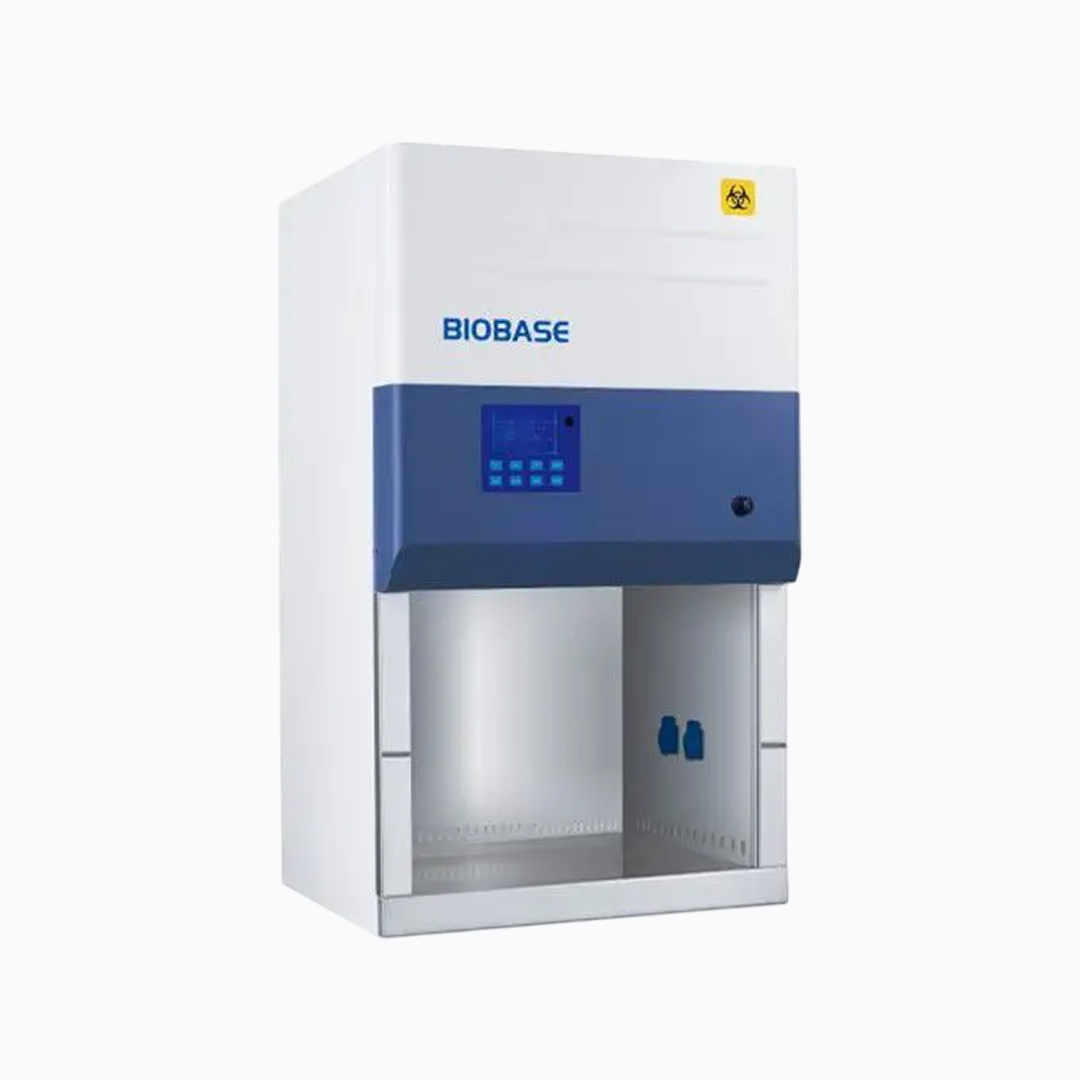

Biological safety cabinet is necessary equipment in the laboratory in the search of microbiology, biomedical, DNA recombinant, animal experiment and biological products, especially in the occasion that operator need to adopt protective measure, such us medical and health, medical research. This equipment provides a safety working environment which don’t have bacterial and dust in the process of bacterial culture.
Contact us for pricing!
Product Features
- Compact Design: Saves space with a small dimension.
- Centrifugal Fan: Adjustable speed with an H14 HEPA filter.
- Motorized Front Window: The front window is motorized for easy one-handed operation.
- Audio and Visual Alarms: Alerts for abnormal airflow velocity, filter replacement, front window at unsafe height, and high filter pressure.
- Time Reserve Function: Saves up to 30 minutes of waiting time after activating the cabinet and the sterilization time after an experiment.

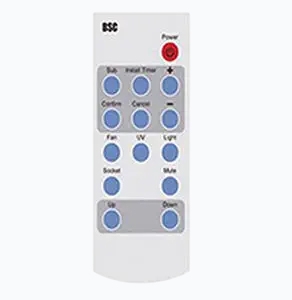

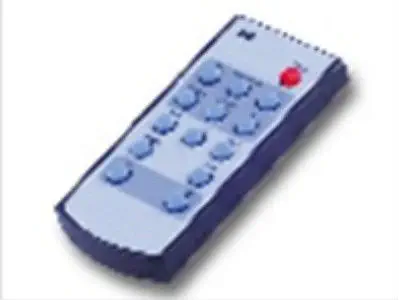

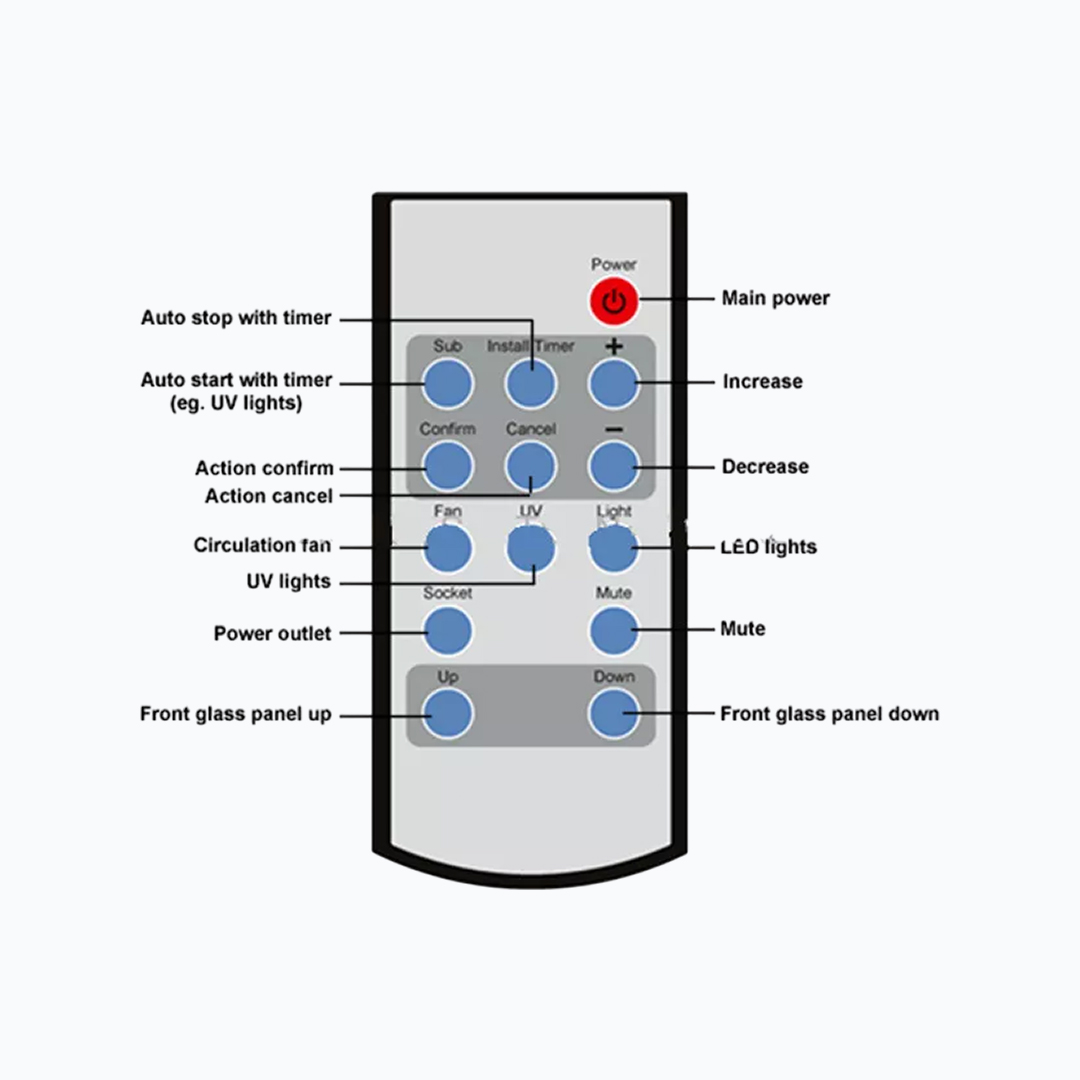

- Remote Control: Allows operation from up to 6 meters away, ensuring operator safety in emergencies.

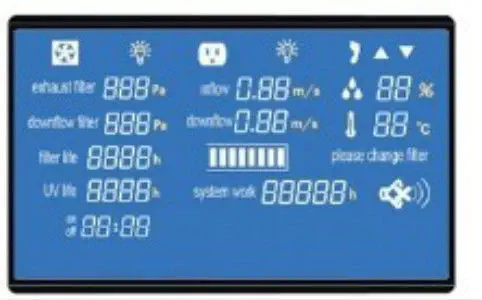

- Large LCD Display: Provides detailed cabinet status, including inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time, filter life, and more.
- Memory Function: Retains settings in case of power failure.
- Interlock Function: Ensures safety with interlocks between the UV lamp and front window, UV lamp and blower, LED lamp, blower, and front window.
Product Specifications
| Dimensions | 70 × 64 × 123 cm |
|---|---|
| Instrument Classification | Class II |
Extended Specifications
| Model | 11231 BBC 86 |
|---|---|
| External Size (W*D*H) | 700 x 640 x 1230 mm (without base stand) |
| Internal Size (W*D*H) | 600 x 500 x 530 mm |
| Tested Opening | Safety height 200 mm (8") |
| Max Opening | 370 mm (15") |
| Inflow Velocity | 0.53 ± 0.025 m/s |
| Down Flow Velocity | 0.33 ± 0.025 m/s |
| HEPA Filter | Two filters, 99.995% efficiency at 0.3 μm. Filter life indicator included |
| Front Window | Double-sided laminated glass |
| Noise | ≤ 67 dB |

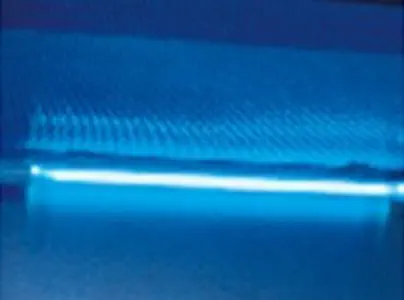

| UV Lamp | 15W x 1, with UV timer, UV life indicator, and emission of 253.7 nm for efficient decontamination |
| LED Lamp | 8W x 2 |
| Illumination | ≥ 1000 Lux |
| Power Consumption | 500 W |

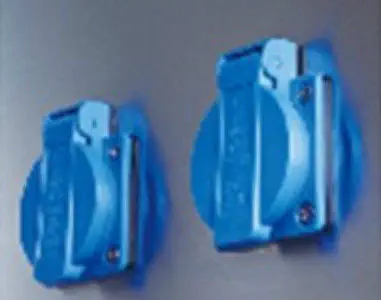

| Socket | Two sockets, total load capacity: 500 W |
| Display | LCD display |
| Control System | Microprocessor-based |

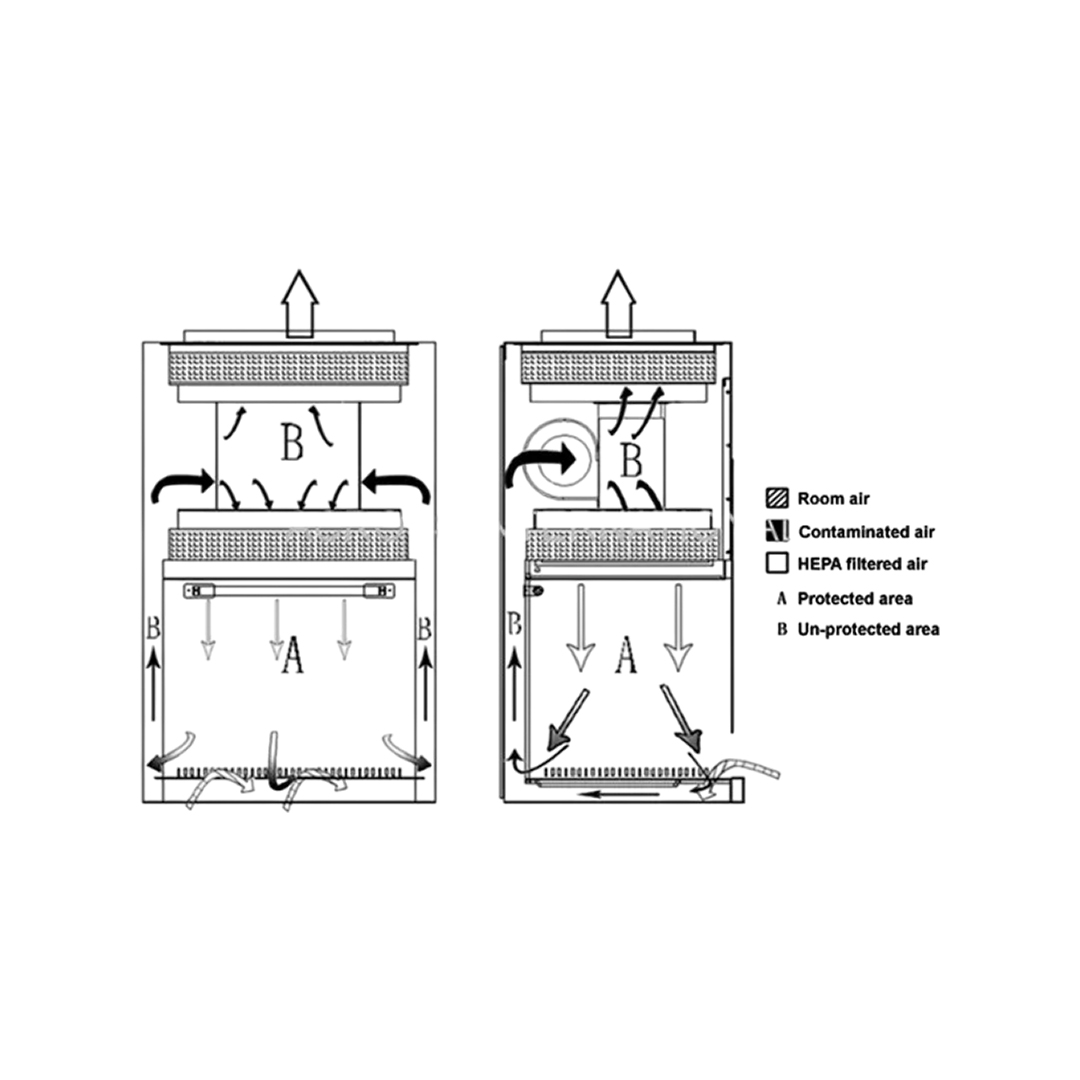

| Airflow System | 70% air recirculation, 30% air exhaust |
| Visual and Audio Alarm | Filter replacement, window over height, abnormal airflow velocity, high filter pressure alarm |
| Material |
|
| Work Surface Height | 750 mm with optional base stand |
| Power Supply | AC 220V ± 10%, 50/60 Hz; AC 110V ± 10%, 60 Hz |
| Standard Accessories |
|
| Optional Accessories |
|
| Packing Size (without base stand): |
|
| Gross Weight (without base stand) |
|
| Packing Size (with base stand) |
|
| Gross Weight (with base stand) |
|
