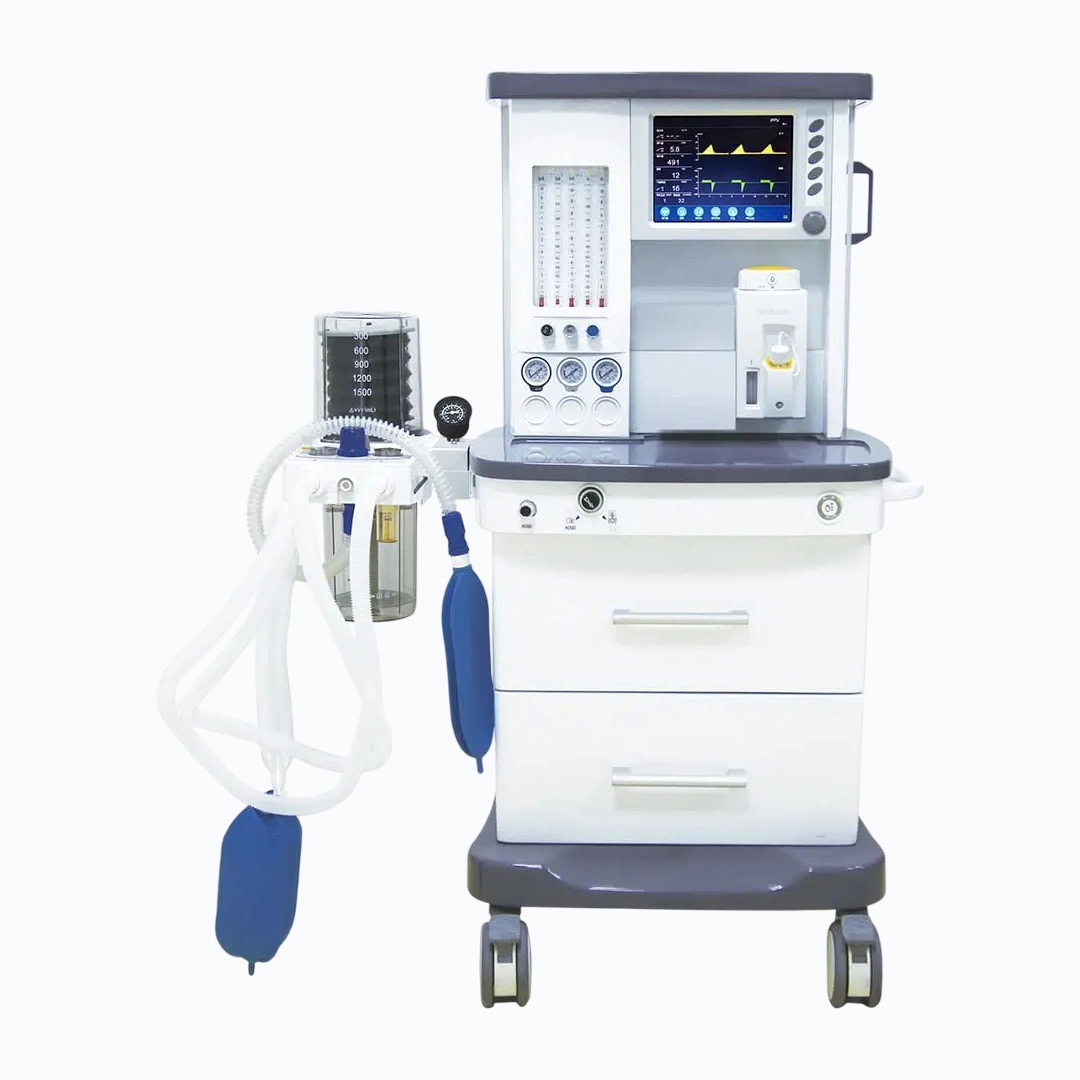

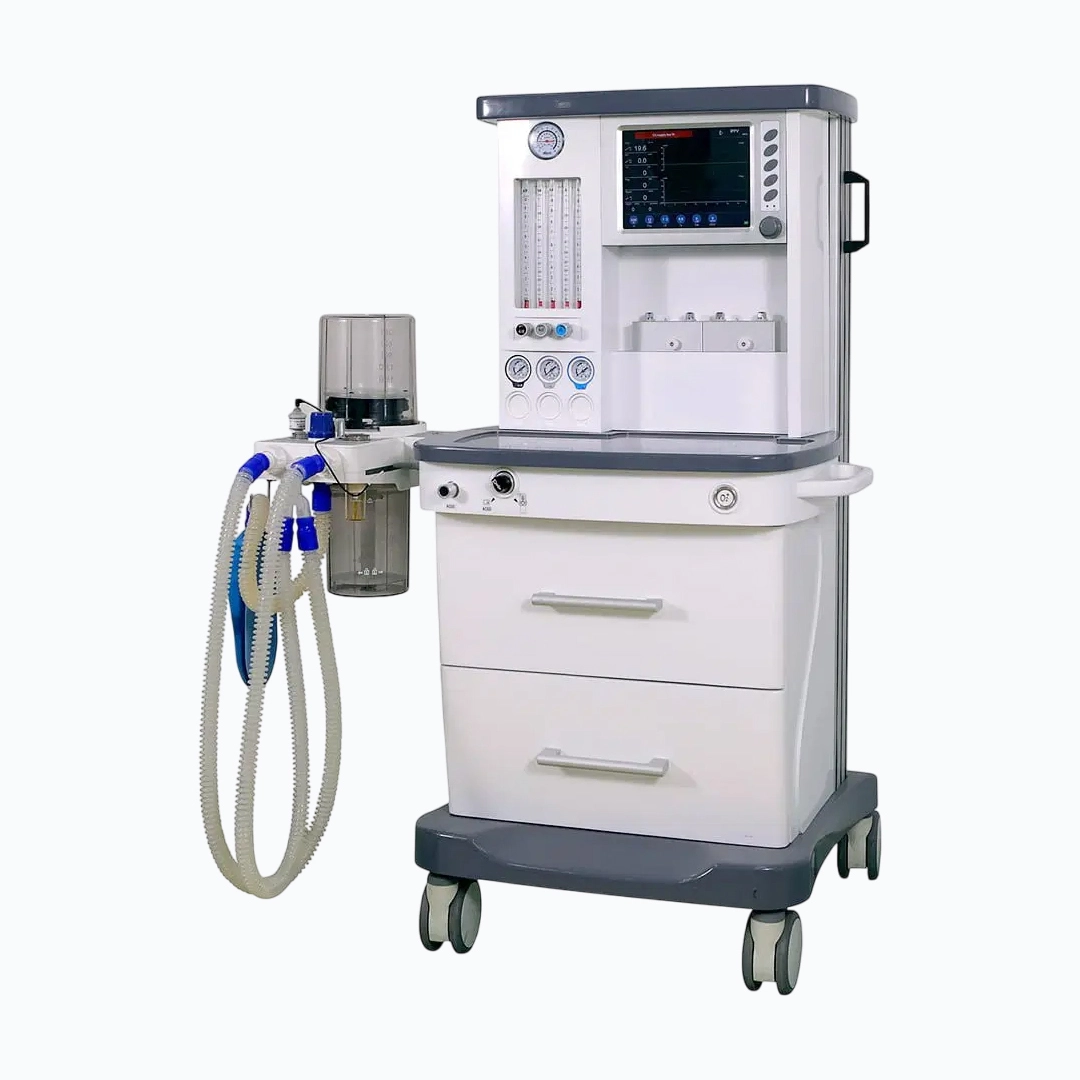

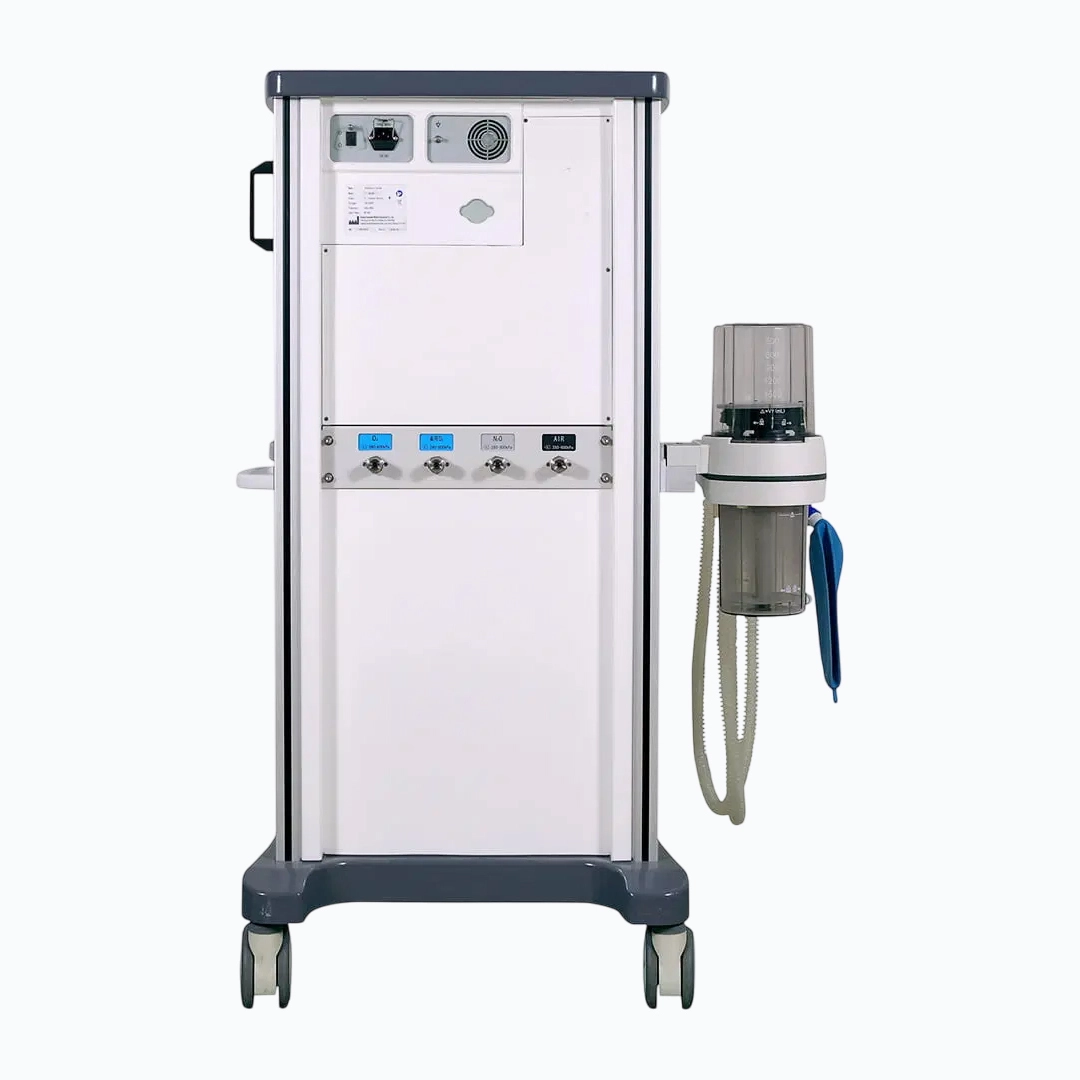

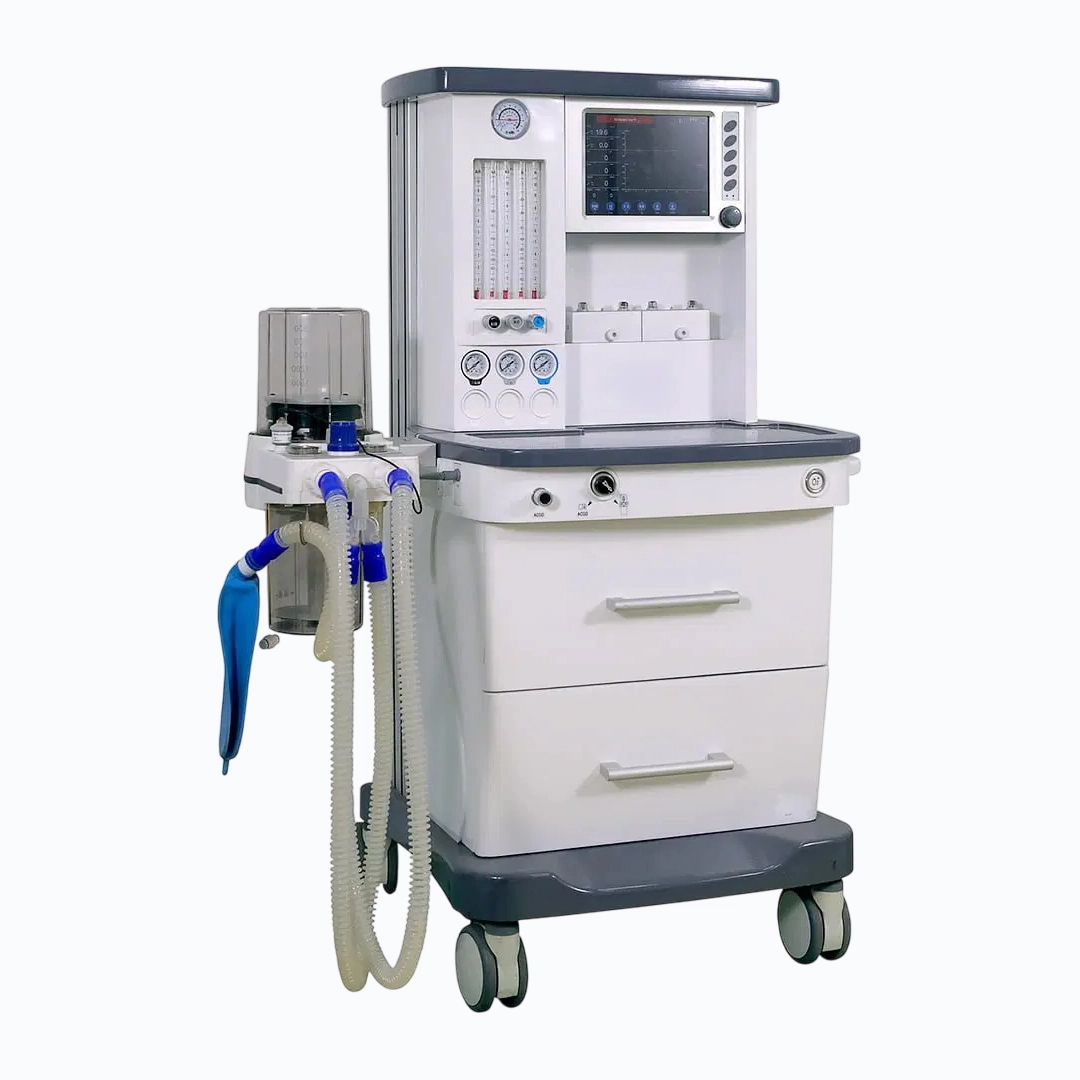

The 6100 Anesthesia System is a reliable, precise, and user-friendly solution designed for ICUs, operating rooms, and anesthesiology departments.
With advanced ventilation modes, real-time monitoring, and top-tier safety features, it ensures high accuracy and stability for pediatric to geriatric patients.
Built with 23+ years of expertise and trusted worldwide with over 3,000 installations, this anesthesia system is the perfect choice for modern healthcare facilities.
- ✅ 10.4” TFT LCD screen for clear monitoring
- ✅ 5 ventilation modes: IPPV, A/C, PCV, SIMV, SIGH
- ✅ High-precision flow meter & O₂ monitoring
- ✅ Built-in safety features & backup power
- ✅ Over 3,000 units installed worldwide
Contact us for pricing!
Product Features
Friendly. Powerful. Reliable.
The 6100 Anesthesia System is designed to deliver safe, precise, and reliable anesthesia across various medical settings,
including ICUs, operating rooms, and anesthesiology departments. Whether managing simple or complex cases,
for pediatric or geriatric patients, this system offers versatile ventilation modes, advanced monitoring, and high accuracy.
With 23 years of expertise, Superstar Medical ensures high security, stability, and accuracy, making the
6100 Anesthesia System a trusted choice worldwide. Over 3,000 units installed globally reflect its efficiency and reliability.
Key Benefits
- ✅ Simplicity: Easy to operate and maneuver with four-wheel mobility.
- ✅ Versatile Options: Adapts to different patient needs and procedures.
- ✅ Patient-Centered Ventilation: Five ventilation modes—IPPV, A/C, PCV, SIMV, SIGH—for optimal respiratory support.
- ✅ Expertly Designed: Developed by Superstar Medical with over 23 years of experience in anesthesia solutions.
- ✅ Flexible Configurations: Customizable settings to suit various medical requirements.
- ✅ Advanced Technology: Meets international standards and supports a wide range of applications.
- ✅ User-Friendly Interface: Large 10.4” TFT LCD screen for clear monitoring and seamless operation.
Key Features
- 📌 High-Resolution Display:
– 10.4” TFT LCD screen shows ventilation parameters, alarms, and waveform graphics. - 📌 Precision & Control:
– High-precision flow meter for real-time gas flow monitoring.
– Integrated breathing circuit design for simplified operation.
– Volume control & pressure-limited modes suitable for diverse patients. - 📌 Enhanced Safety:
– Vaporizer with temperature, flow compensation, and self-locking mechanism for continuous safety.
– Real-time pressure-time, flow-time loop graphics with high-precision O₂ concentration detection.
– Optional vital sign monitor & anesthetic gas monitor for comprehensive patient monitoring.
– Optional ETCO₂ module for advanced respiratory monitoring.
Advanced Safety System
- 🛑 Three-Level Alarm System: Visual and audible alerts ensure patient safety.
- 🔋 Intelligent Power Management: Built-in backup power activates if the main power supply fails.
- ⚠️ Low O₂ Pressure Alarm & N₂O Cut-Off Protection: Ensures a stable gas supply at all times.
- 🔄 Multiple Alarms & Reminders: Real-time alerts for uninterrupted operation.
Trusted Worldwide
The 6100 Anesthesia System is a reliable, precise, and user-friendly solution for anesthesia delivery.
Designed with cutting-edge technology and safety features, it is the perfect choice for modern medical facilities worldwide.
✅ Trusted Globally | Over 3,000 Installations | Built for Safety & Efficiency
Product Specifications
| Weight | 91.2 kg |
|---|---|
| Dimensions | 87 × 89 × 160 cm |
| Ventilation Modes | A/C, IPPV, MAN, PCV, SIGH, SIMV |
| Display Panel Technology | TFT |
| Display Size(Diagonal) | 10.4-inch |
| Display Resolution | 800×600 |
| Display Type | Color |
| Application | Adults, Pediatrics |
| Gas Source | Air, N₂O, O₂ |
Extended Specifications
| Ventilator Parameter Ranges | |
|---|---|
| Flow Meter |
|
| Rapid Oxygen Supply | 35 – 75 L/min |
| Tidal Volume (Vt) | 20 – 1500 mL |
| Breathing Frequency (Freq) | 1 – 100 bpm |
| I/E Ratio (Inspiratory/Expiratory Ratio) |
4:1 – 1:8 |
| Positive End-Expiratory Pressure (PEEP) | 0 – 30 cmH₂O |
| Pressure Triggering Sensitivity (PTr) | -20 – 0 cmH₂O (Based on PEEP) |
| Flow Triggering Sensitivity (FTr) |
0.5 – 30 L/min |
| Pressure Control (PC) | 5 – 60 cmH₂O |
| SIGH Function | 0 (Off), 1/100 – 5/100 |
| Apnea Ventilation | Off, 5 – 60 seconds |
| Pressure Limit | 20 – 100 cmH₂O |
| Monitored Parameters |
|
| Graphical Display |
|
| Size & Weight | Wooden Case Packing Size: L 770 × W 890 × H 1535 mm Gross Weight (GW): 151 kg Net Weight (NW): 91.2 kg |
| Alarms & Protection | |
| General Alarms |
|
| Oxygen Concentration Alarms |
|
| Airway Pressure Alarms |
|
| Minute Volume Alarms |
|
| Ventilation & Safety Alerts |
|
| Working Conditions |
|
| Vaporizer Specifications |
|
| Vaporizer | 1 standard, max 2 vaporizers |
| Flow Meter | Five tubes |
| Optional Features |
|
| Ventilation Modes |
|
| I:E Ratio (Inspiratory: Expiratory Ratio) | 4:1 to 1:8 |
| Breathing Circuit Sensor | Internal dual sensor |
| Power Supply | 100-240V |
| Battery Backup | 2-3 hours |
| Oscillograph Display |
|
