Advanced & User-Friendly
This infusion pump features audible and visual alarms for safety, a preset solution volume to reduce nurses’ workload, and three work modes (Rate, Time-Volume, Dosage-Weight) for precise infusion control. The one-key operationensures easy setup, while the syringe plunger grabbing detector allows one-handed use in sterile environments. Its HD LCD display provides clear, real-time status updates. Designed for stackable placement, it offers flexible clinical applications. OEM customization is available for specific needs.
Contact us for pricing!
Product Features
- Calibration function available. Disposable IV set of any brand is compatible with this pump.
- Audible & Visual Alarms: Alerts for occlusion, equipment failure, software exceptions, infusion completion, limited infusion completion, low battery, improper installation, abnormal operation, and more.
- Preset Solution Volume: Reduces the workload of nurses by allowing pre-programmed infusion settings.
- Three Work Modes: Rate Mode, Time-Volume Mode, and Dosage-Weight Mode for versatile infusion control.
- One-Key Operation: Simplifies setup and operation with an intuitive interface.
- Syringe Plunger Grabbing Detector: Allows one-handed operation in a sterile, no-germ environment.
- HD LCD Display: High-resolution screen with a user-friendly interface, dynamic status updates, and high capacity for clear visibility.

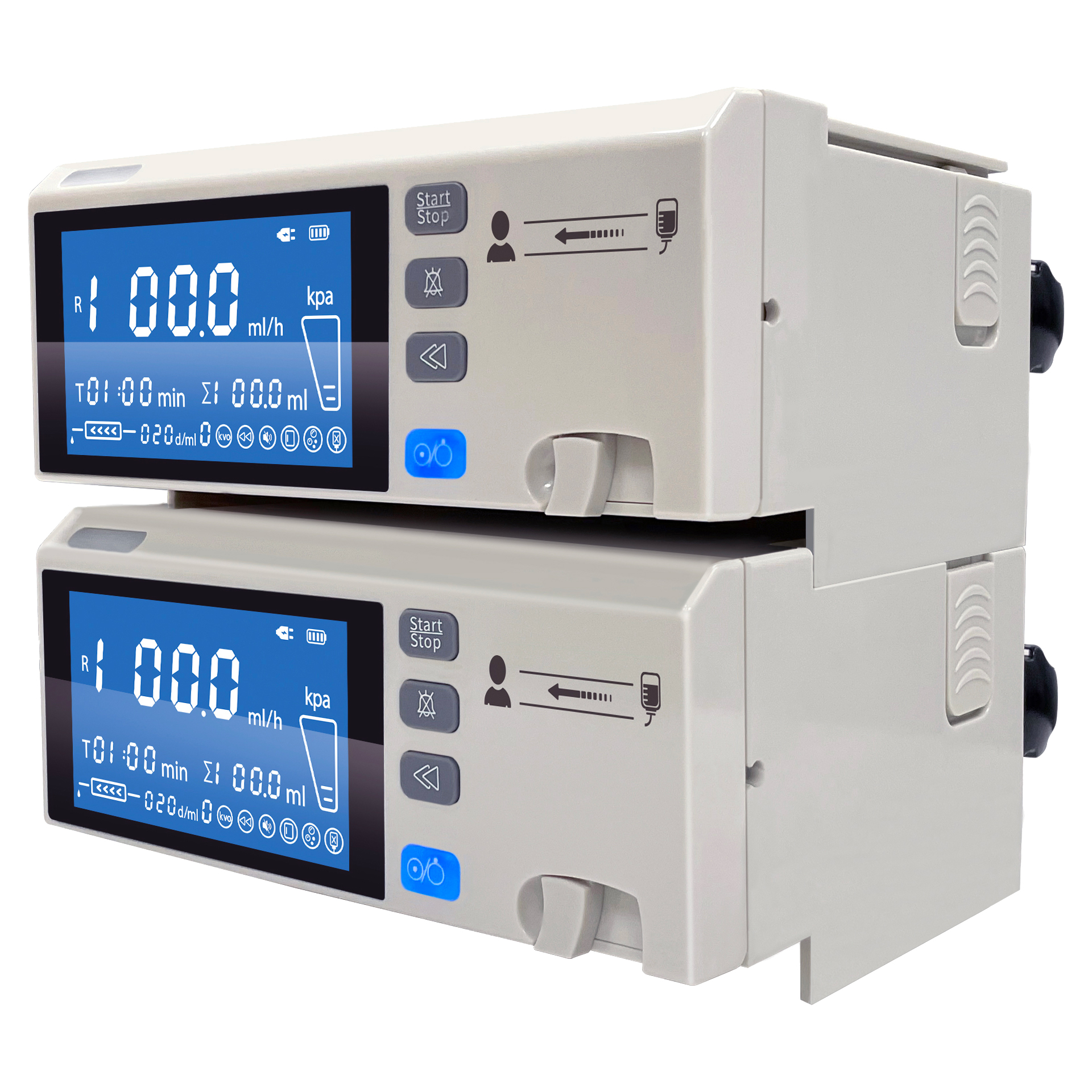

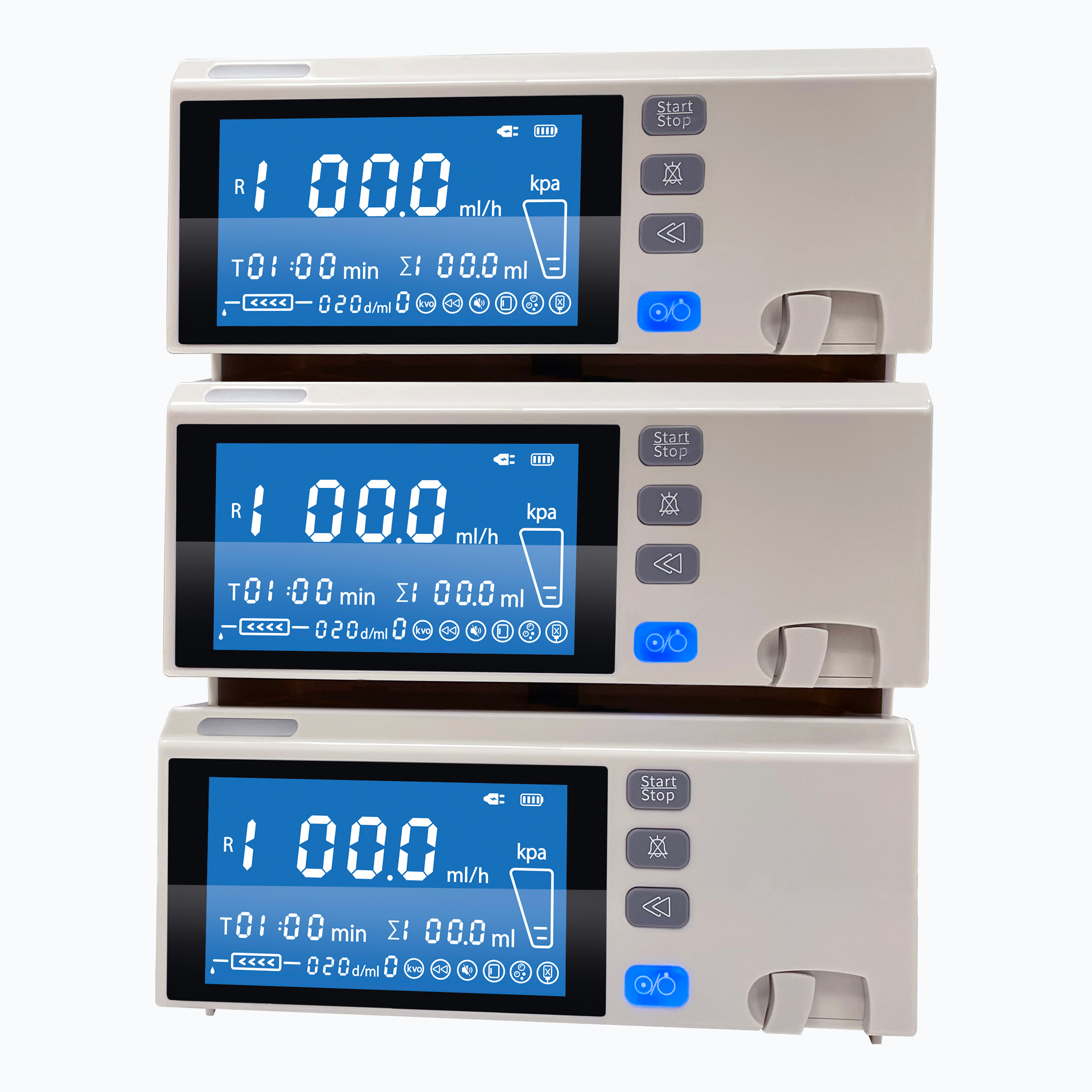

- Stackable Design: Enables multiple units to be securely placed on top of each other, offering flexible clinical applications.
- OEM Availability: Custom branding, packaging, and product configuration options are available upon request.
- Purge Function: Automatically clears air from the infusion line, ensuring a safe and accurate flow of fluid at the start of infusion.
- KVO (Keep Vein Open) Function: Maintains a low, continuous flow to keep the IV line open and prevent occlusion when no medication is being infused.

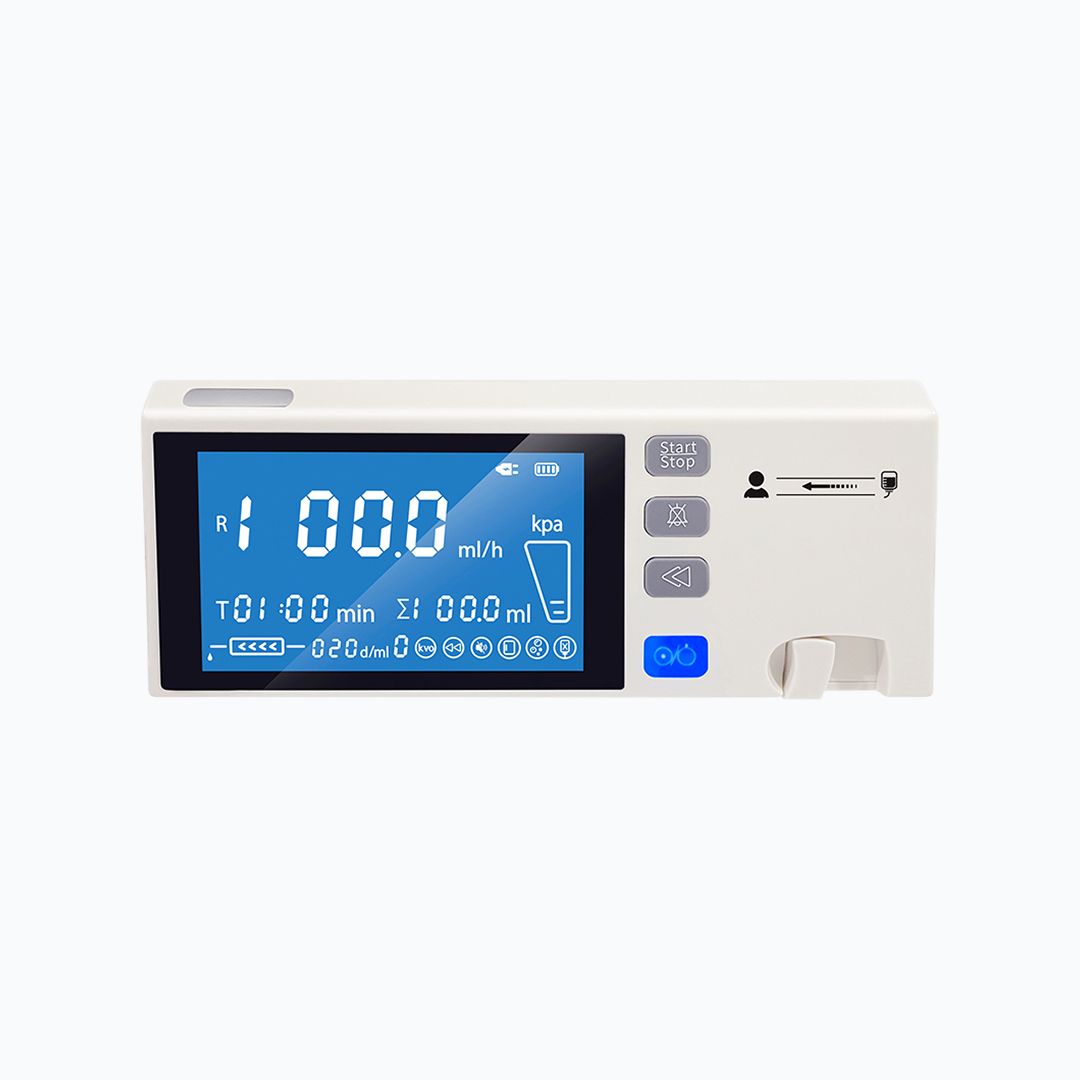

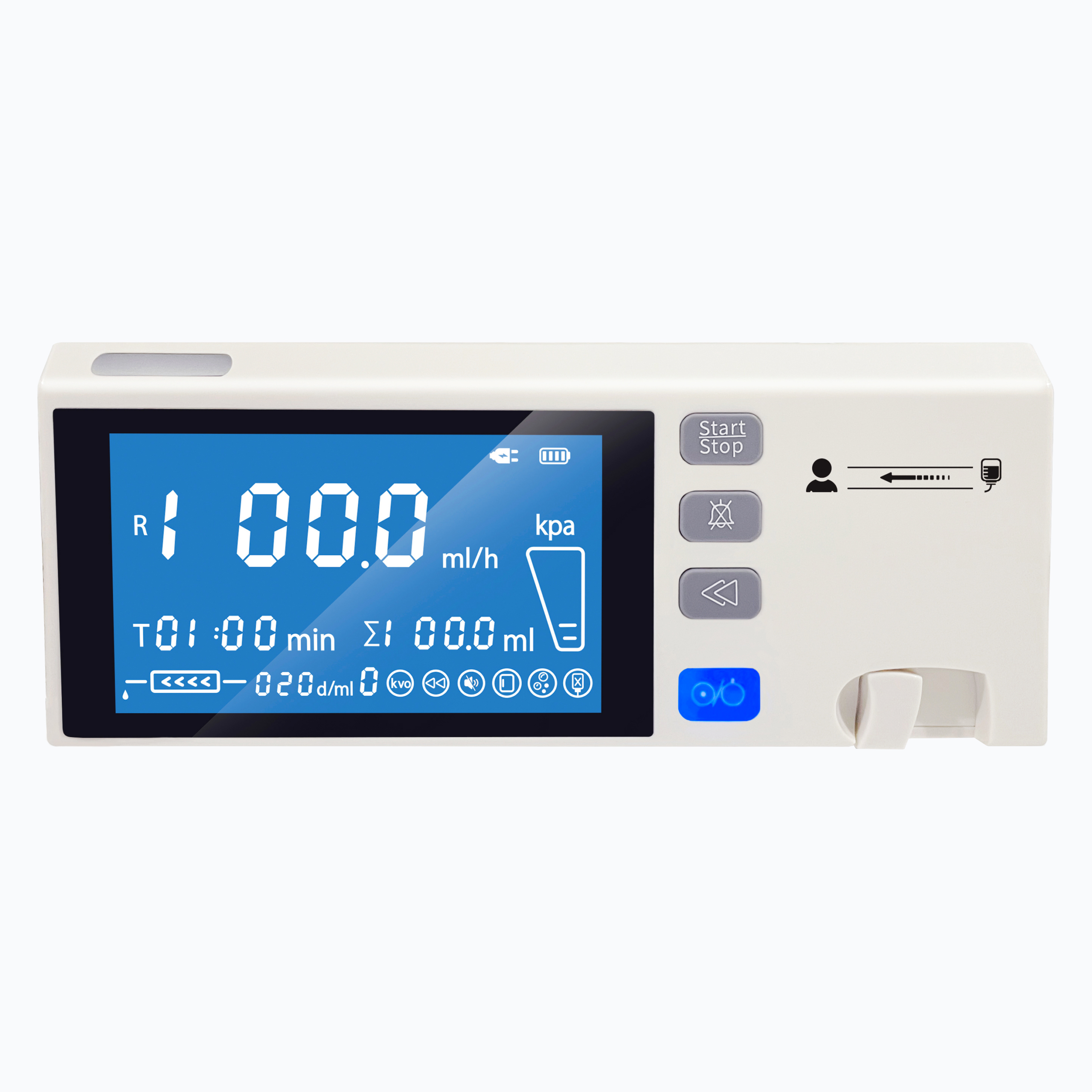

- 4.3-inch color LCD display, with backlight: Suitable for working in various ambient light conditions.
Product Specifications
| Weight | 2.2 kg |
|---|---|
| Dimensions | 18.8 × 19.8 × 22.8 cm |
| Pump Type | Drip Type Infusion Pump |
| Pumping Mechanism | Peristaltic Fingers |
| Alarm Function | Yes |
| Display Panel Technology | LCD |
| Display Size(Diagonal) | 4.3-inch |
| Display Resolution | 480×272 |
| Display Type | Color |
| Instrument Classification | Class II |
| Warranty | 1 year |
| Place of Origin | Shanghai, China |
Extended Specifications
| Adjustable Drop Rate Range |
|
|---|---|
| Adjustable Volume Rate Range |
|
| Flow precision | Within 3% (using the IV set appointed by the manufacturer or a calibrated high-quality IV set) |
| Mechanical precision | Within 2% |
| Purge Rate | 800 ml/h |
| KVO Rate |
|
| Infusion Volume Range | 1 ml to 9999.9 ml (Adjustable in steps of 0.1 ml) |
| Maximum Accumulated Volume | 9999.9 ml (Adjustable in steps of 0.1 ml) |
| Time Range | 1 min to 9999 min(Adjustable in steps of 1 min) |
| Occlusion alarm thresholds |
|
| Alarm |
|
| Air Bubble Detector |
|
| Fuse |
|
| Power Supply | AC 85-265V, 50/60Hz |
| Internal Battery |
|
| Power | 40VA |
| Display Information |
|
| Environment Requirements |
|
"Product specifications and details are provided by the manufacturer and are for reference only. While we strive to ensure accuracy, we cannot guarantee that all information is complete, up-to-date, or error-free. If you have any questions or require confirmation, please contact us before making a purchase."
