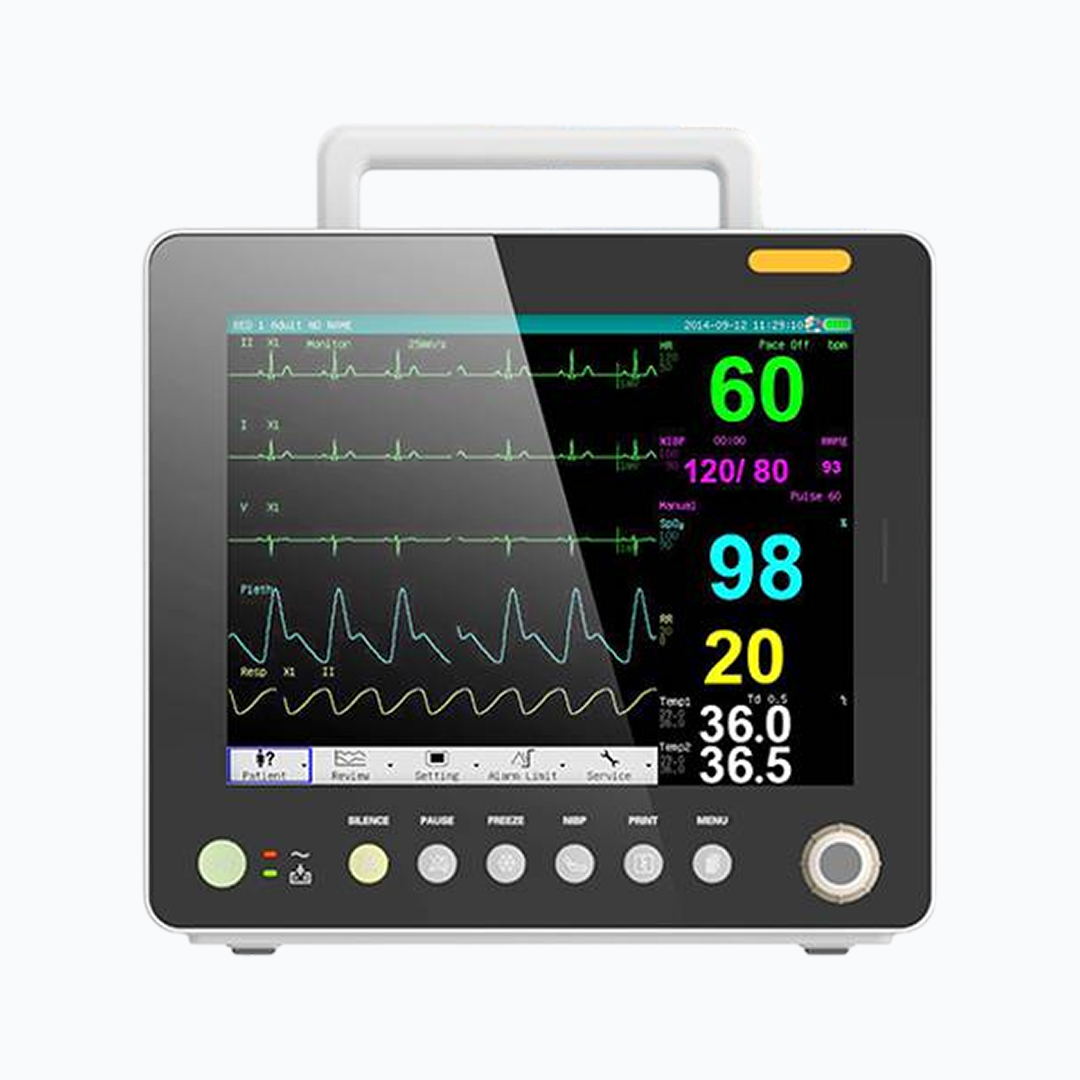

This patient monitor measures key parameters, including ECG, RESP, SpO₂, NIBP, and dual-channel temperature. It combines a measurement module, display, and recorder into a compact, portable design. Additionally, its built-in, replaceable battery ensures convenience for patient mobility.
Contact us for pricing!
Product Features
- Elegant design with clear markings, a standard interface, an OxyCRG screen, trend graphs, large characters, and multi-bed observation for user convenience.
- Suitable for adults, pediatric, and neonatal patients.
- Standard parameters: ECG, RESP, NIBP, SpO₂, and dual-channel TEMP. Optional features include IBP, CO₂ monitoring, a built-in printer, a curved handle, a mobile stand, and a wall-mount bracket.
- User-friendly interface available in Chinese and English, operated via buttons and knobs. Optional languages: French, German, Italian, Dutch, Portuguese, Turkish, Spanish, Polish.
- 12.1” high-resolution color TFT LCD displays patient parameters, waveforms, alarms, bed number, clock, system status, and other essential information in real time.
- Customizable monitoring settings, including scan speed, volume, and output content.
- Stores up to 480 hours of trend data with a 40-second holographic waveform review.
- Stores and reviews 72 hours of ECG waveform data.
- NIBP review function with storage for up to 2400 NIBP measurements.
- Advanced digital SpO₂ technology with strong anti-interference and low-perfusion detection capability.
- Drug concentration calculation feature.
- Networking capability: Connects to a central monitoring station, supports multi-bed observation, and allows software updates via wired or wireless connections.
- Built-in rechargeable battery ensures uninterrupted monitoring.
- Resistant to high-frequency surgical interference and defibrillation-proof (requires special leads).
- Optional heart rate variability (HRV) analysis function.
Product Specifications
| Weight | 4.8 kg |
|---|---|
| Dimensions | 38 × 35 × 30 cm |
| Place of Origin | Shanghai, China |
| Power Source | Electricity |
| Warranty | 1 year |
| Material | Metal, Plastic |
| Shelf Life | 1 Year |
| Quality Certification | CE (Conformité Européenne) |
| Instrument Classification | Class II |
| Display Size(Diagonal) | 12.1-inch |
| Display Panel Technology | TFT |
| Display Type | Color |
| Display Resolution | 800×600 |
Extended Specifications
| Type | Vital Sign Machine |
|---|---|
| Application | Adult, Pediatric and Neonatal |
| ECG Channels | 3-Channel, 5-Channel |
| ECG Lead Configuration | 3/5 Lead ECG |
| Parameters Monitored | ECG, RESP, NIBP, SPpO2, 2-TEMP, PR, 2-IBP, CO2 |
| Electrocardiogram (ECG) | Yes |
| Respiration Rate (RESP) | Yes |
| Non-Invasive Blood Pressure (NIBP) | Yes |
| Pulse Oximetry (SpO₂) | Yes |
| Dual Temperature (2-TEMP) | Yes |
| Pulse Rate (PR) | Yes |
| Dual Invasive Blood Pressure (2-IBP) | Yes |
| Capnography (CO₂) | Yes |
| NIBP Storage | 2400 measurements |
| Holographic waveform review duration | 40 seconds |
| Built-in Printer | Yes |
| Power Supply | 220V, 50Hz |
| Multi-Languages | Spanish, French, English, Portuguese, Turkish, German and so on. |
| Safety Standard | Class II |
| ECG Performance |
|
| Bandwidth Performance |
|
| Calibration Signal | 1 mV (Vp-p), ±5% Accuracy |
| ST Segment Monitoring | Measuring and Alarm Range: -0.6 mV ~ +0.8 mV |
| ARR(Arrhythmia) Detecting Type |
|
| Alarm | Available |
| Review | Available |
| Scan Speed for ECG Waveform (Adjustable) |
|
| Respiration Performance |
|
| RESP Rate Performance |
|
| NIBP (Non-Invasive Blood Pressure) Performance |
|
| Resolution |
|
| Over-pressure Protection |
|
| SpO₂ (Pulse Oximetry) Performance |
|
| Pulse Rate (PR) Performance |
|
| TEMP (Temperature) Performance |
|
| ETCO2(End-Tidal Carbon Dioxide) Performance |
|
| IBP(Invasive Blood Pressure) Performance |
|
Included Accessories
Patient Monitor — SUN-603S includes following accessories:- Adult SpO2 Probe(5-pin): 1 set
- Adult NIBP Cuff: 1 set
- Extending Tube for Blood Pressure: 1 set
- ECG Lead: 1 set
- ECG Electrode: 1 set
- Temperature Probe: 1 set
- Power Cord: 1 set
- Thermal Recording Paper: 1 set (Optional)
- User Manual: 1 set
"Product specifications and details are provided by the manufacturer and are for reference only. While we strive to ensure accuracy, we cannot guarantee that all information is complete, up-to-date, or error-free. If you have any questions or require confirmation, please contact us before making a purchase."
