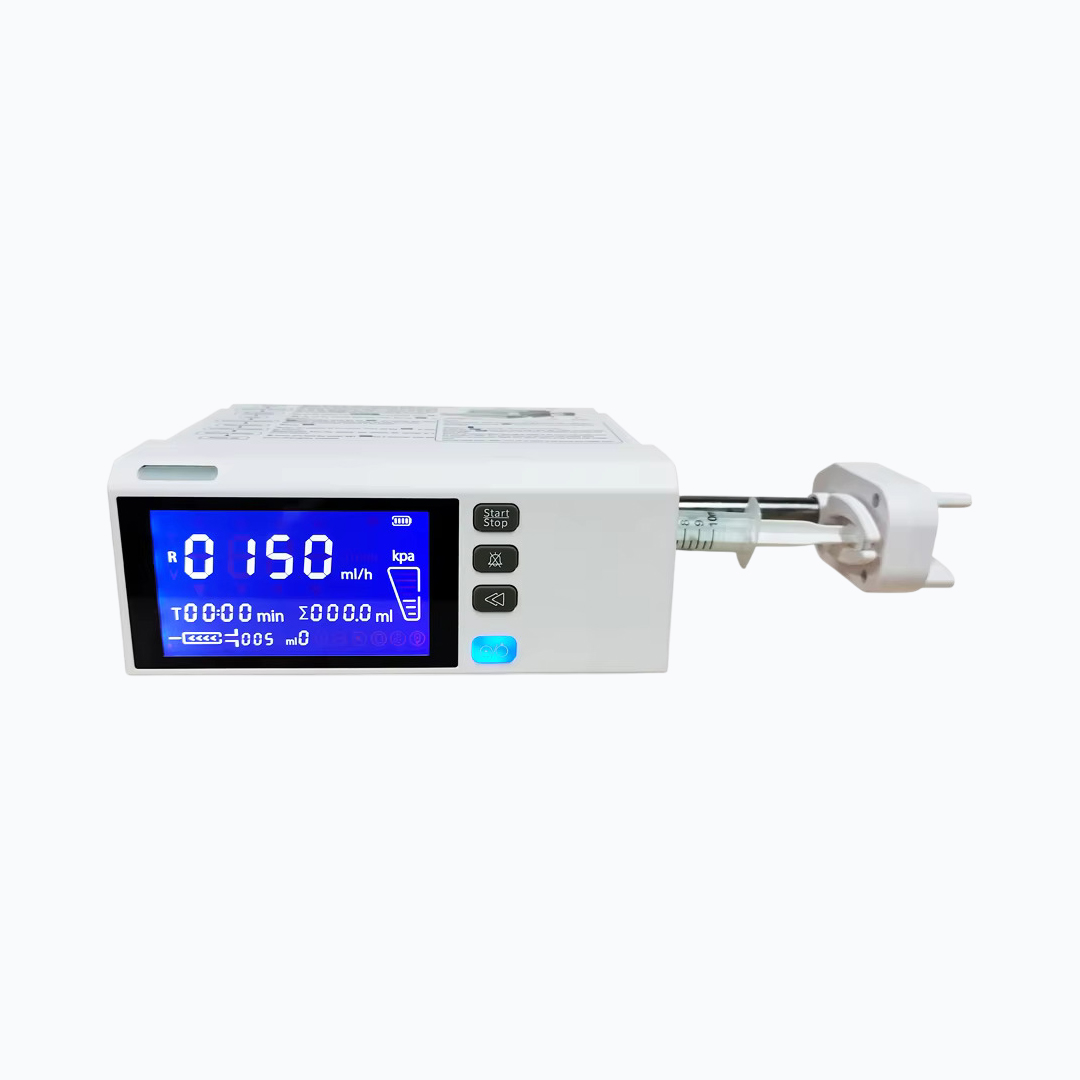

The SUN-500C Portable Ambulance Infusion & Syringe Pump is a compact, user-friendly device designed for efficient, safe, and precise fluid delivery in emergency and clinical settings. It features audible and visual alarms for critical events such as occlusion, equipment failure, and low battery. The pump offers three work modes: Rate Mode, Time-Volume Mode, and Dosage Weight Mode, with preset solution volume to ease nursing workloads.
With a touch screen for intuitive control and one-key operation for quick setup, the pump ensures a seamless experience. It also includes a syringe plunger grabber for secure placement and handling, along with an easy-to-use, drip-proof design. OEM availability allows for custom configurations, making this pump a reliable choice for medical professionals on the go.
Product Features
- Audible and Visual Alarms for:
- Occlusion
- Equipment failure
- Software exceptions
- Injection completion
- Limited finish
- Battery running low
- Improper installation
- Abnormal operation
- And more
- Preset Solution Volume to significantly reduce the workload of nurses.
- Three Work Modes:
- Rate Mode
- Time-Volume Mode
- Dosage Weight Mode
- One-Key Operation for easy and quick setup.
- Touch Screen for convenient and intuitive control.
- Syringe Plunger Grabber for secure placement and handling.
- Detector Operable with One Hand in a no-germ environment.
- Compact and Portable design for easy transportation and use.
- Top-Bottom Cabin Structure: Drip-proof design for safety.
- User-Friendly Interface: For easy and convenient operation.
- Open the Cap and Place the Syringe: Simple syringe loading process.
- OEM Available.
Product Specifications
| Weight | 2.2 kg |
|---|---|
| Dimensions | 25 × 22 × 10 cm |
| Display Panel Technology | LCD |
| Display Type | Color |
| Quality Certification | CE (Conformité Européenne) |
| Instrument Classification | Class II |
| Place of Origin | Shanghai, China |
| Warranty | 1 year |
Extended Specifications
| Remote Control Function | Yes |
|---|---|
| Alarm Function | Yes |
| Multi-Injection Modes | V Mode (Volume Mode); T Mode (Time Mode); Body Weight Mode |
| Drug Library | Yes |
| Injection Rate |
|
| Bolus Rate |
|
| Purge Rate |
|
| Volume Limit | 0.1 ml – 9999.9 ml (Adjustable in 0.1 ml steps) |
| Total Injection Volume | 0.1 ml – 9999.9 ml (Adjustable in 0.1 ml steps) |
| Occlusion Alarm Thresholds |
|
| KVO Speed | 0.1–5 ml/h (Adjustable in 0.1 ml/h steps) |
| Rate Accuracy | Within ±3% (after correct calibration). |
| Mechanical Accuracy | Within ±2% |
| Built-in Rechargeable Battery | Provides approximately 3 hours of continuous operation on a full charge. |
| Power Source | Input: 100V–240V AC, 50/60Hz |
| Power Consumption | 35VA |
| Syringe Compatibility | Supports 5ml, 10ml, 20ml, 30ml, and 50/60ml syringes. Compatible with any brand after proper calibration. |
| Device Type | First-Aid Device; Single-Use Infusion Pump; Cost-Effective & Affordable |
| Maximum Stackable Units | Up to 8 pieces |
