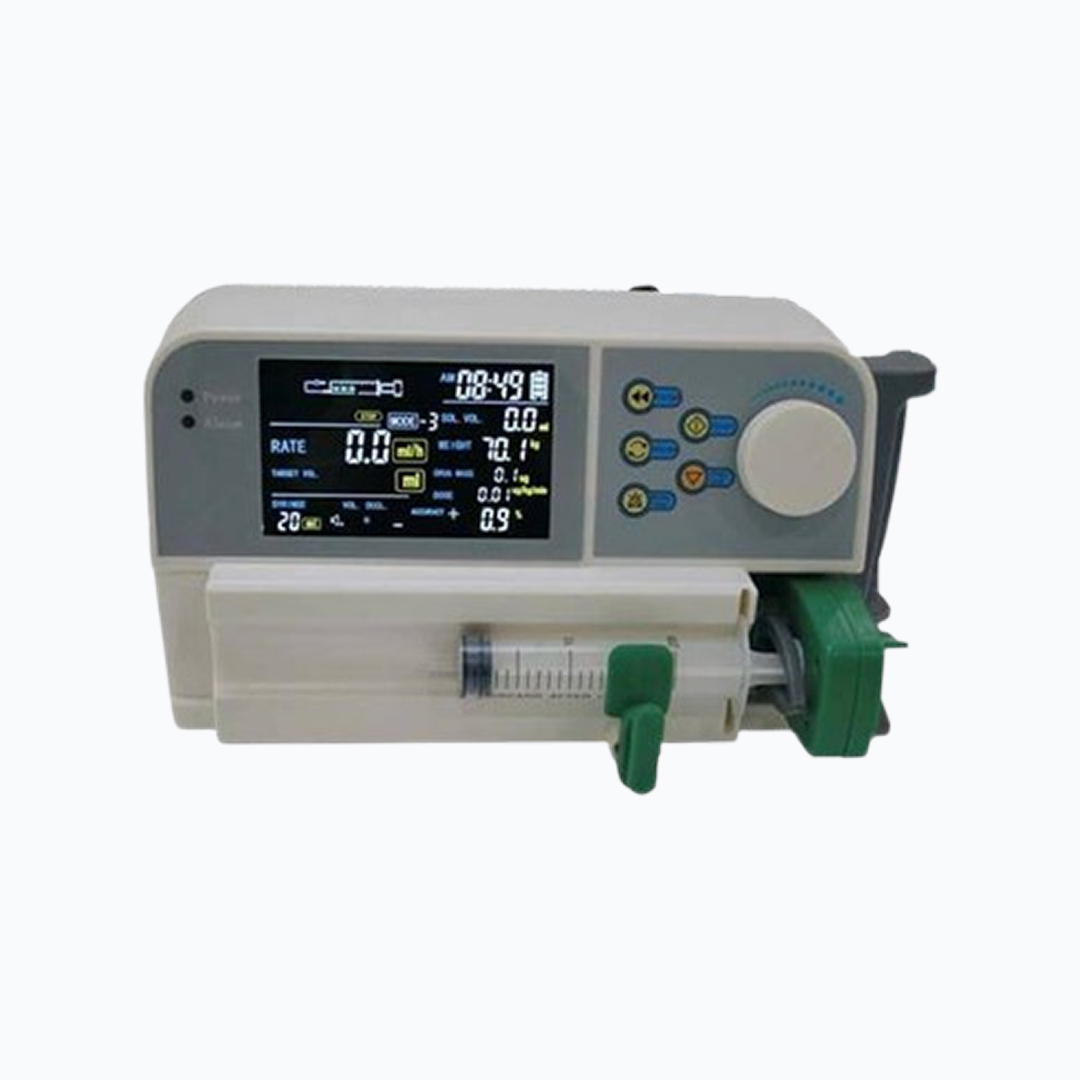

Portable Electric Infusion/Syringe Pump for ICU — SUN-500

Portable Electric Infusion/Syringe Pump for ICU — SUN-500

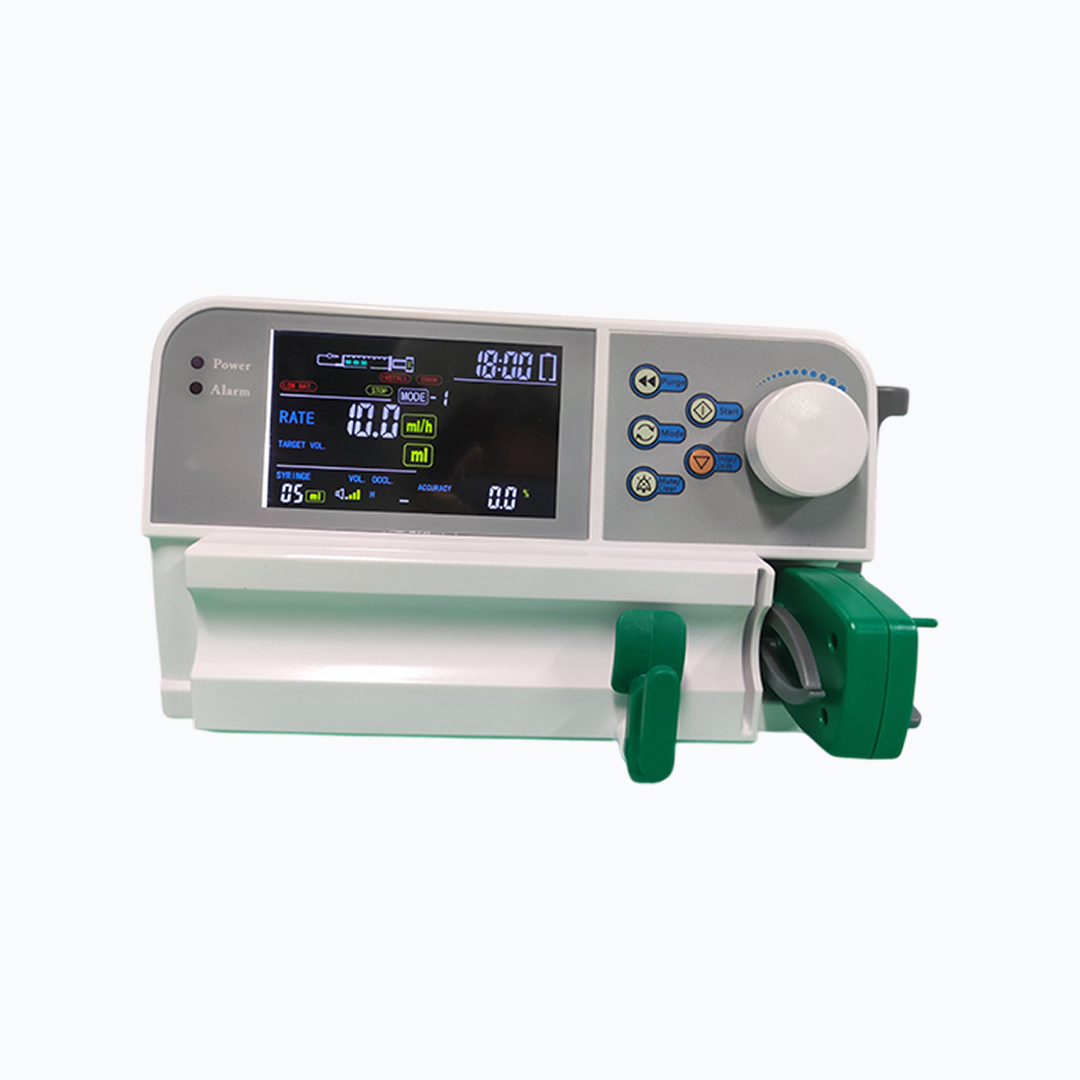

Portable Electric Infusion/Syringe Pump for ICU — SUN-500 - Image 2

The SUN-500 syringe pump provides precise, long-term control of injection speed for clinical treatments. It supports intravenous, anesthetic, anticoagulant, and chemotherapy injections and is suitable for ICUs and specialized medical departments. Compatible with standard disposable syringes, it uses a microprocessor-controlled stepping motor for accurate delivery. Its intelligent sensor system detects and resolves blockages automatically, ensuring continuous operation

Contact us for pricing!

Sun-Fri 9 AM to 5 PM
SKU: RPLISP500 Categories: ,

Product Features

The SUN-500 syringe pump is designed for long-term, precise control of injection speed and real-time monitoring in clinical treatments. It is widely used in various clinical departments for conventional intravenous injections, anesthetic administration, anticoagulant therapy, and chemotherapy for cancer patients. Additionally, it is suitable for use in medical intensive care units (ICUs), neurology ICUs, and other specialized settings.

The SUN-500 syringe pump is compatible with standard disposable syringes and operates with constant speed and volume for high precision. Its working principle involves a microprocessor-controlled stepping motor, which drives a mechanical transmission system to generate translational force. Multiple sensors regulate the injection speed and ensure accurate delivery throughout the process, making it a high-precision intelligent syringe pump.

In the event of an injection extension line blockage, the built-in detector ensures automatic adjustments. The syringe pump temporarily stops operation and resumes automatically once the blockage pressure returns to normal.

  • 4.3-inch large LCD screen with different color displays.
  • LCD backlight allows use in various lighting conditions.
  • Time display for convenience and time memory.
  • Simultaneous display of time, battery, injection state, mode, speed, injection volume and time, syringe size, alarm sound, block, accuracy, body weight, drug, dose, and liquid amount.
  • Remote control function to adjust speed, time, volume, and drug amount directly, ensuring easier operation and saving doctors’ and nurses’ time.
  • Advanced technology, primarily based on a Linux system, ensuring safety and stability. All technical aspects are designed in-house, allowing for future updates.
  • Multiple injection modes, including V mode, T mode, and body weight mode.
  • Comprehensive alarm system that detects all abnormal conditions with visible and audible alerts, displaying detailed information on the screen.

Product Specifications

Weight 2.2 kg
Dimensions 28.2 × 21 × 14.8 cm
Injection Mode

Body Weight Mode, T Mode (Time Mode), V Mode (Volume Mode)
Display Panel Technology

LCD
Display Size(Diagonal)

4.3-inch
Display Resolution

480×272
Display Type

Color
Battery

Built-in Lithium Battery
Instrument Classification

Class II
Place of Origin

Shanghai, China
Warranty

1 year

Extended Specifications

Preset Volume Range

0.1～1999.9 ml

KVO Rate

0.1～5ml/h (step: 0.1 ml/h)

Alarms

Syringe Near-Empty, Injection finished, Preset dose injection finished, Occlusion, Syringe off, Syringe dislocated, Low battery, AC power off

Injection Rate

  • 50ml Syringe: 0.1 ml/h – 999.9 ml/h (Adjustable in 0.1 ml/h steps)
  • 50ml Syringe: 1000 ml/h – 1800 ml/h (Adjustable in 1 ml/h steps)
  • 30ml Syringe: 0.1 ml/h – 900 ml/h (Adjustable in 0.1 ml/h steps)
  • 20ml Syringe: 0.1 ml/h – 600 ml/h (Adjustable in 0.1 ml/h steps)
  • 10ml Syringe: 0.1 ml/h – 300 ml/h (Adjustable in 0.1 ml/h steps)

Bolus Rate

  • 50 ml Syringe: 1200 ml/h
  • 30 ml Syringe: 600 ml/h
  • 20 ml Syringe: 400 ml/h
  • 10 ml Syringe: 200 ml/h
  • 5 ml Syringe: 100 ml/h

Purge Rate

  • 50 ml Syringe: 1800 ml/h
  • 30 ml Syringe: 900 ml/h
  • 20 ml Syringe: 600 ml/h
  • 10 ml Syringe: 300 ml/h
  • 5 ml Syringe: 150 ml/h

Occlusion Alarm Thresholds

  • High: 800 mmHg ± 200 mmHg (106.7 kPa ± 26.7 kPa)
  • Medium: 500 mmHg ± 100 mmHg (66.7 kPa ± 13.3 kPa)
  • Low: 300 mmHg ± 100 mmHg (40.7 kPa ± 13.3 kPa)

Mechanical Precision

Within±2%

Fuse

F1AL/250V
2 pcs (installed inside pump)

Power Supply

100～220V,50Hz, Built in Rechargeable Li-ion battery,
11.1V,Capacity ≥2000mAh;
After charging 10 hours, it can work at 5ml/h (GB 9706.27-2005 medium rate) for 4 hours

Safe Class

Class I Type BF

Environment Requirements

Operation:

  1. Ambient temperature: +5℃ ~ +40℃
  2. Relative humidity: 20% ~ 90%
  3. Atmospheric pressure: 86.0 ~ 106.0 kPa
Transportation & Storage:
  1. Ambient temperature: -30℃ ~ +55℃
  2. Relative humidity: ≤95%
  3. Atmospheric pressure: 50.1 ~ 106.0 kPa

Included Accessories

Portable Electric Infusion/Syringe Pump for ICU — SUN-500 includes following accessories:
  1. Pump: 1 set
  2. Remote Controller: 1 set
  3. Power Cord: 1 set
  4. User Manual: 1 set
  5. Guarantee Card: 1 set
  6. Certificate: 1 set
"Product specifications and details are provided by the manufacturer and are for reference only. While we strive to ensure accuracy, we cannot guarantee that all information is complete, up-to-date, or error-free. If you have any questions or require confirmation, please contact us before making a purchase."
